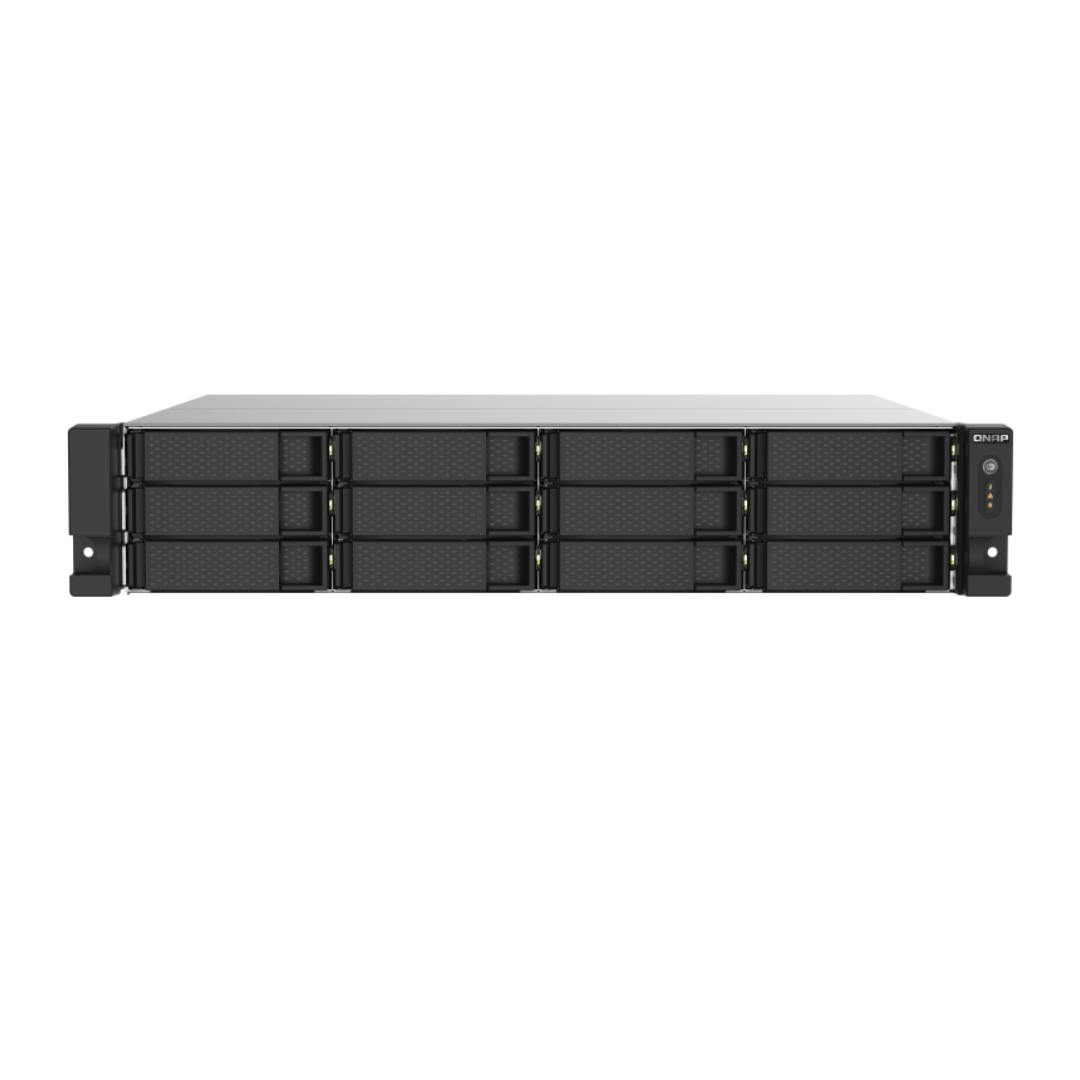

بررسی فنی دستگاه ذخیرهساز QNAP TS-1273AU-RP-8G
۱. پردازنده قدرتمند
- پردازنده: AMD Ryzen V1500B سری V1000
- تعداد هسته/ترد: ۴ هسته و ۸ ترد (Thread)
- فرکانس: ۲٫۲ گیگاهرتز
- کاربرد: بهینهسازی عملکرد ماشینهای مجازی و پردازش موازی.
۲. اتصالات شبکه و توسعهپذیری
- پورتهای شبکه:
- ۲ عدد پورت 2.5GbE برای انتقال داده با سرعت بالا.
- ۲ اسلات PCIe Gen 3 برای افزودن کارتهای توسعه (مانند 10GbE، NVMe SSD).
- مزیت: امکان ارتقای زیرساخت شبکه و افزودن قابلیتهای سفارشی.
۳. طراحی مقاوم و مطمئن
- منبع تغذیه: Redundant (اضافی) با قابلیت تعویض Hot-Swap.
- امنیت: جلوگیری از Downtime در شرایط بحرانی.
۴. سختافزار پیشرفته + نرمافزار یکپارچه
- ادغام سختافزار و نرمافزار:
- بهینهسازی برای اجرای برنامههای پرمصرف منابع مانند پایگاهدادههای سازمانی.
- پشتیبانی از فشردهسازی داده و رمزنگاری سختافزاری.
۵. انعطاف در انتخاب سیستمعامل
- پشتیبانی از دو سیستم عامل:
- QTS: رابط کاربری ساده برای مدیریت عمومی.
- QuTS: مبتنی بر ZFS برای محیطهای سازمانی با نیازهای امنیتی بالا.
- قابلیت تغییر: انتخاب سیستم عامل بر اساس نیازهای کسبوکار.
🎯نتیجه: QNAP TS-1273AU-RP-8G با ترکیب سختافزار قدرتمند، انعطافپذیری بالا و امنیت سازمانی، گزینهای ایدهآل برای شبکههای حرفهای است.
TS-1273AU-RP-8G | |
CPU | AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor |
CPU Architecture | 64-bit x86 |
Floating Point Unit | ✅ |
Encryption Engine | (AES-NI) |
Hardware-accelerated Transcoding | Optional via a PCIe graphics card |
System Memory | 8 GB UDIMM DDR4 (1 x 8 GB) |
Maximum Memory | 64 GB (2 x 32 GB) |
Memory Slot | 2 x UDIMM DDR4 |
Support ECC memory | |
For dual-DIMM configuration, you must use a pair of identical DDR4 modules. | |
Flash Memory | 5GB (Dual boot OS protection) |
Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s |
The system is shipped without HDD. | |
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ | |
Drive Compatibility | 3.5-inch SATA hard disk drives |
2.5-inch SATA solid state drives | |
Hot-swappable | (Not supported M.2 SSD) |
M.2 Slot | Optional via a QNAP QM2 PCIe card |
SSD Cache Acceleration Support | ✅ |
GPU pass-through | ✅ |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a network adapter |
10 Gigabit Ethernet Port | Optional via a network adapter |
Wake on LAN (WOL) | Only the 2.5GbE port |
Jumbo Frame | ✅ |
PCIe Slot | 2 x PCIe Gen3 x4 |
With a riser card (two PCIe slots): | |
slot 1:160 x 68.9x 18.76 mm / 6.3 x 2.71 x 0.74 inches. | |
slot 2:160 x 68.9x 39.08 mm / 6.3 x 2.71 x 1.54 inches. | |
Wider cards can be installed if the next PCIe slot will not be used. | |
Without a riser card (one PCIe slot): | |
Slot 1:160 x 68.9x 39.08 mm / 6.3 x 2.71 x 1.54 inches. | |
USB 3.2 Gen 1 port | 1 x Type-A |
USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-C |
1 x Type-A | |
HDMI™ Output | Optional via a PCIe graphics card |
Form Factor | 2U Rackmount |
LED Indicators | HDD 1-12, Status, LAN, USB, Power |
Buttons | Power, Reset |
Dimensions (HxWxD) | 88.6 × 432 × 370.7 mm |
Excludes ear hook and the protruding part of the Power Supply Unit. | |
Weight (Net) | 11.13 kg |
Weight (Gross) | 14.62 kg |
Operating Temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 300W (x2) PSU, 100 - 240V |
Power Consumption: Disk Standby Mode | 43.67 |
Power Consumption: Operating Mode, Typical | 78.92 W |
Tested fully populated with WD10EFRX hard drives. | |
Fan | 2 x 80mm, 12VDC |
System Warning | Buzzer |
Standard Warranty | 3 |
Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
QTS | |
---|---|
Operating System | QTS 5.2.3 |
Supported Client Operating Systems | 1. Apple Mac OS 10.10 or later |
2. Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux | |
3. IBM AIX 7, Solaris 10 or later UNIX | |
4. Microsoft Windows 7, 8, 10 and 11 | |
5. Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022 | |
✅ | |
Supported Browsers | 1. Apple Safari (latest version) |
2. Google Chrome (latest version) | |
3. Microsoft Edge (latest version) | |
4. Mozilla Firefox (latest version) | |
Supported Languages | Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish |
Storage Pool | ✅ |
SED Storage Pool | ✅ |
Maximum Pool size | 308 TB |
Maximum number of storage pool | 128 |
Volume Type | Thick, Thin, Static |
Maximum volume size | 250 TB |
Note: At least 4 GB RAM is required. | |
Maximum number of volume | 128 |
Maximum shared folder size | 250 TB |
Maximum number of shared folder | 512 |
JBOD Expansion | ✅ |
VJBOD / VJBOD Cloud | ✅ |
iSCSI Service | ✅ |
Fibre Channel Service | ✅ |
LUN Type | Thick, Thin |
File-based iSCSI LUN | ✅ |
Block-based iSCSI LUN | ✅ |
Maximum LUN size | 250 TB |
Note: At least 4 GB RAM is required. | |
Maximum number of targets LUN | 128 |
LUN feature | 1. LUN Mapping (LUN can be moved between iSCSI and FC) |
2. LUN Masking | |
3. WWPN Aliases Import/Export | |
4. FC Port Group | |
5. FC Port Binding | |
6. Multipath IO (MPIO) | |
7. Online LUN capacity expansion | |
8. LUN snapshot | |
9. LUN snapshot replication and clone | |
✅ | |
Auto Tiering | Requires minimum 2GB memory. |
RAID Type | 1. 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 |
2. 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 | |
3. 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 | |
4. 2-bay: JBOD, Single, RAID 0, 1 | |
RAID Group | To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected. |
RAID Level Migration | ✅ |
RAID Expansion (by adding Disk) | ✅ |
RAID Expansion (by replacing bigger Disks) | ✅ |
Storage Pool Expansion (by adding RAID Group) | ✅ |
RAID Hot Spare | Global, Local |
RAID Sync/Rebuild/Scrubbing | ✅ |
Internal drive | EXT4 |
External drive | EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model) |
Note: To use exFat in certain models you must purchase an exFAT driver license from License Center. | |
Disk, Enclosure Locate | ✅ |
Disk S.M.A.R.T. Scan | ✅ |
Disk S.M.A.R.T. Data Migration | ✅ |
Ironwolf Health Management | ✅ |
Secure Erase | ✅ |
SSD Trim | ✅ |
SSD Life Estimation | ✅ |
Disk Roaming | ✅ |
Disk Standby | ✅ |
Volume Snapshot | ✅ |
LUN Snapshot | ✅ |
Maximum Snapshot (Per System) | Check maximum number of snapshots of your NAS |
Maximum Snapshot (Per Volume / LUN) | Check maximum number of snapshots of your NAS |
Minimum Snapshot Interval | 5 minutes |
Snapshot Retention Policy | ✅ |
Self-serve Snapshot Recovery | ✅ |
Application Consisted Snapshot | ✅ |
Snapshot Full Clone | ✅ |
Snapshot Replica / Vault | ✅ |
SSD read-only Cache | ✅ |
SSD read-write cache | ✅ |
SSD write-only cache | ✅ |
SSD Cache Maximum Size | Check your QNAP NAS cache capacity and RAM requirements |
SSD Cache RAID | 0, 1, 5, 6, 10 |
SSD profiling tool | ✅ |
External Device Management | ✅ |
Mount Smart Phone (MTP) | ✅ |
External RAID Device (QNAP so on) Management (External Device Mode) | ✅ |
External RAID Device (QNAP so on) Management (NAS Mode) | ✅ |
File Server | 1. File sharing across Windows, Mac, and Linux/UNIX |
2. Microsoft networking (CIFS/SMB) |
QuTS hero | |
---|---|
Operating System | QuTS hero h5.2.3 |
Supported Client Operating Systems | 1. Apple Mac OS 10.10 or later |
2. Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux | |
3. IBM AIX 7, Solaris 10 or later UNIX | |
4. Microsoft Windows 7, 8, 10, and 11 | |
5. Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, and 2022 | |
✅ | |
Supported Browsers | 1. Apple Safari (latest version) |
2. Google Chrome (latest version) | |
3. Microsoft Edge (latest version) | |
4. Mozilla Firefox (latest version) | |
Supported Languages | Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish |
Storage Pool | ✅ |
SED Storage Pool | ✅ |
Maximum Pool size | 5 PB |
Maximum number of storage pool | 128 |
Shared Folder Type | Thick, Thin |
Maximum shared folder size | 5 PB |
Maximum number of shared folder | 256 |
JBOD Expansion | ✅ |
VJBOD / VJBOD Cloud | ✅ |
iSCSI Service | ✅ |
Fibre Channel Service | ✅ |
LUN Type | Thick, Thin |
Block-based iSCSI LUN | ✅ |
Maximum LUN size | 1024 TB |
Maximum number of targets LUN | 256 |
RAID Type | 1. 8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity |
2. 6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity | |
3. 4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity | |
4. 3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity | |
5. 2-bay: Single, RAID 0 (Stripe), 1 | |
✅ | |
RAID Group | To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected. |
RAID Expansion (by replacing bigger Disks) | ✅ |
Storage Pool Expansion (by adding RAID Group) | ✅ |
RAID Hot Spare | Global, Local |
RAID Sync/Rebuild/Scrubbing | ✅ |
End-to-End data integrity | ✅ |
Silent error detection and self-healing | ✅ |
Internal drive | ZFS |
External drive | EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT |
Disk, Enclosure Locate | ✅ |
Disk S.M.A.R.T. Scan | ✅ |
Disk S.M.A.R.T. Data Migration | ✅ |
Ironwolf Health Management | ✅ |
Secure Erase | ✅ |
SSD Trim | ✅ |
SSD Life Estimation | ✅ |
Disk Roaming | ✅ |
Disk Standby | ✅ |
Shared Folder Snapshot | ✅ |
LUN Snapshot | ✅ |
Maximum Snapshot (Per System) | Check maximum number of snapshots of your NAS |
Maximum Snapshot (Per Volume / LUN) | Check maximum number of snapshots of your NAS |
Minimum Snapshot Interval | 1 minute |
Snapshot Retention Policy | ✅ |
Self-serve Snapshot Recovery | ✅ |
Application Consisted Snapshot | ✅ |
Snapshot Full Clone | ✅ |
Snapshot Instant Clone | ✅ |
Snapshot Replica / Vault | ✅ |
SSD read-only Cache | ✅ |
SSD read & write log cache | ✅ |
SSD dedicated ZIL cache | ✅ |
SSD Cache Maximum Size | Check your QNAP NAS cache capacity and RAM requirements |
SSD Cache RAID | 0, 1, 10 (journal) |
External Device Management | ✅ |
Mount Smart Phone (MTP) | ✅ |
External RAID Device (QNAP so on) Management (External Device Mode) | ✅ |
External RAID Device (QNAP so on) Management (NAS Mode) | ✅ |
File Server | 1. File sharing across Windows, Mac, and Linux/UNIX |
2. Microsoft networking (CIFS/SMB) | |
3. Apple networking (AFP) | |
4. NFS version 3/4 services | |
FTP Server | 1. FTP, SFTP and TFTP protocols |
2. FTP over SSL/TLS (explicit FTPS) | |
3. FXP support | |
Maximum FTP connection | 1024 |
Shared Folder Data Compression | ✅ |
Shared Folder Data Deduplication | ✅ |
Shared Folder WORM | ✅ |
File Station (Web) | ✅ |
Object Storage | ✅ |
Local user account | 16,000 |
Local group account | 512 |
Domain user/group account | 200,000 |
Domain Security | ✅ |
Domain Controller | ✅ |
Shared folder permission | ✅ |
Windows ACL | ✅ |
User quota | ✅ |
Group quota | ✅ |
Folder quota | ✅ |
Home folder | ✅ |
Resource Monitor | ✅ |
SNMP | V2, V3 |
Network recycle bin | 1. Recover files deleted using AFP, CIFS/SMB, and File Station |
2. Automatic cleanup and file type filter | |
System Log & Notification Center | Log recording: 3,000 event per second |
Smart Fan | ✅ |
Schedule on/off | ✅ |
Internet protocol | IPv4, IPv6 |
Virtual Switch | ✅ |
Port trunking | ✅ , (7 modes) |
VLAN | ✅ |
DHCP Server | ✅ |
DDNS (Dynamic Domain Name Service) | ✅ |
Network access protection with auto-blocking | SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP |
Security Counselor | ✅ |
Malware Remover | ✅ |
AES 256-bit Folder Encryption validated by FIPS 140-2 CAVP | ✅ |
2-step verification | ✅ |
Allow/Deny List | ✅ |
Access Protection | ✅ |
Service binding | ✅ |
Firewall | ✅ |
VMware vSphere Ready | ✅ |
Windows Server certifcated | ✅ |
Citrix Ready | ✅ |
vSphere Web Client Plug-in | ✅ |
VMware vSphere VAAI for iSCSI | ✅ |
VMware vSphere VAAI for NAS | ✅ |
Windows ODX | ✅ |
Windows/VMware Snapshot Agent | ✅ |
HTTP/HTTPS Connections | TLS 1.0/1.1/1.2/1.3 |
برای اطلاعات بیشتر راجع به محصول ذخیره ساز تحت شبکه کیونپ TS-1273AU-RP-8G، پی دی اف زیر را مطالعه کنید.
دیدگاه خود را بنویسید
