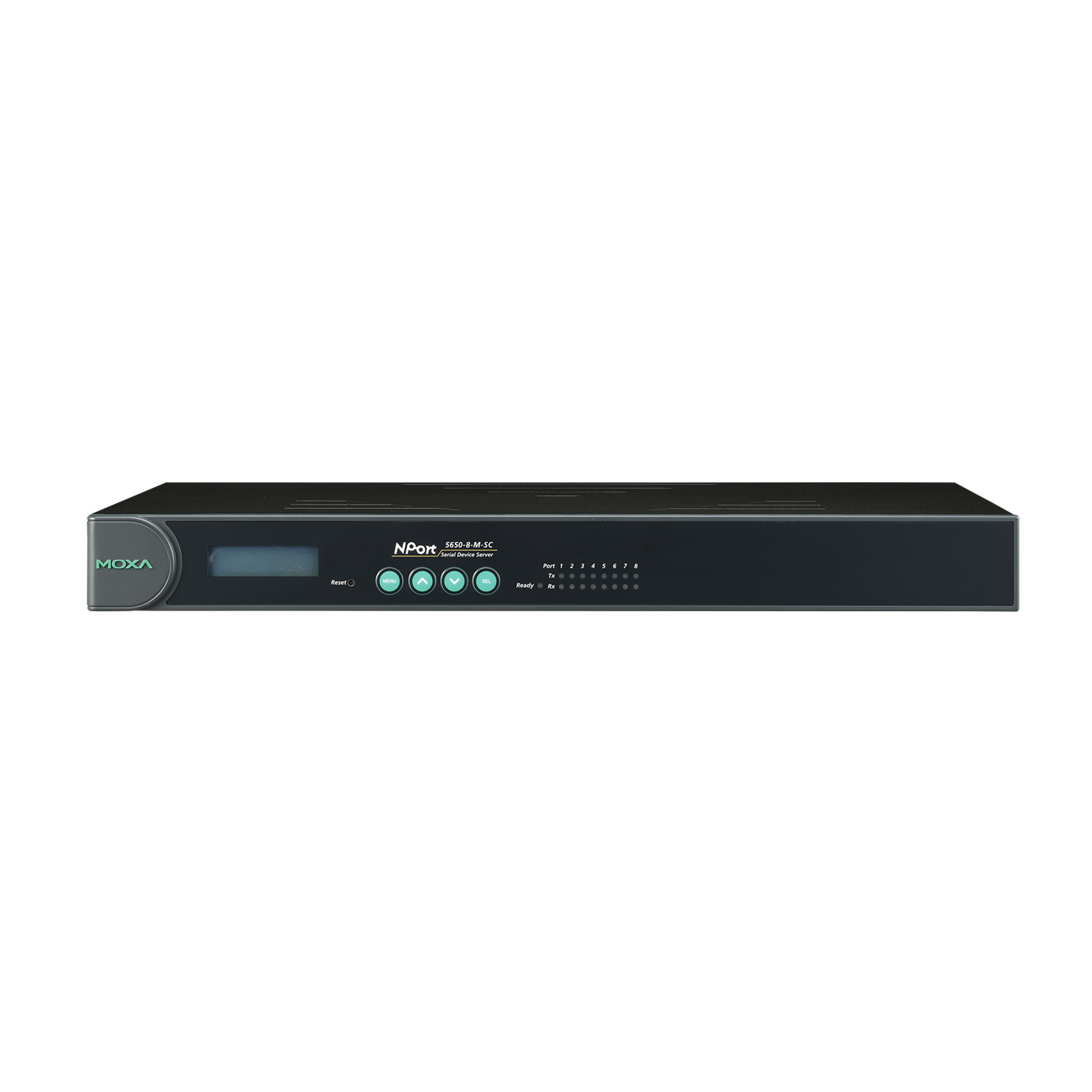

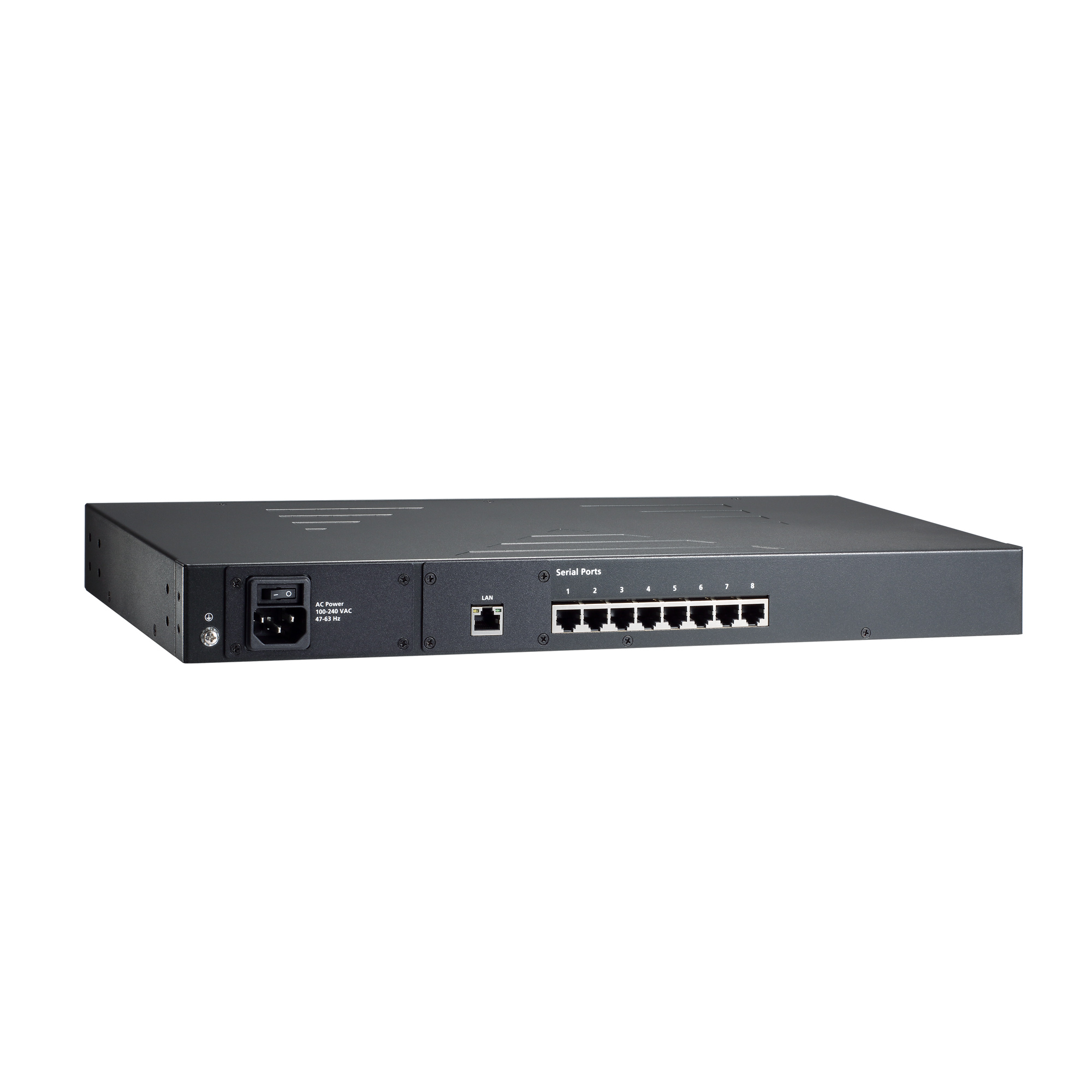

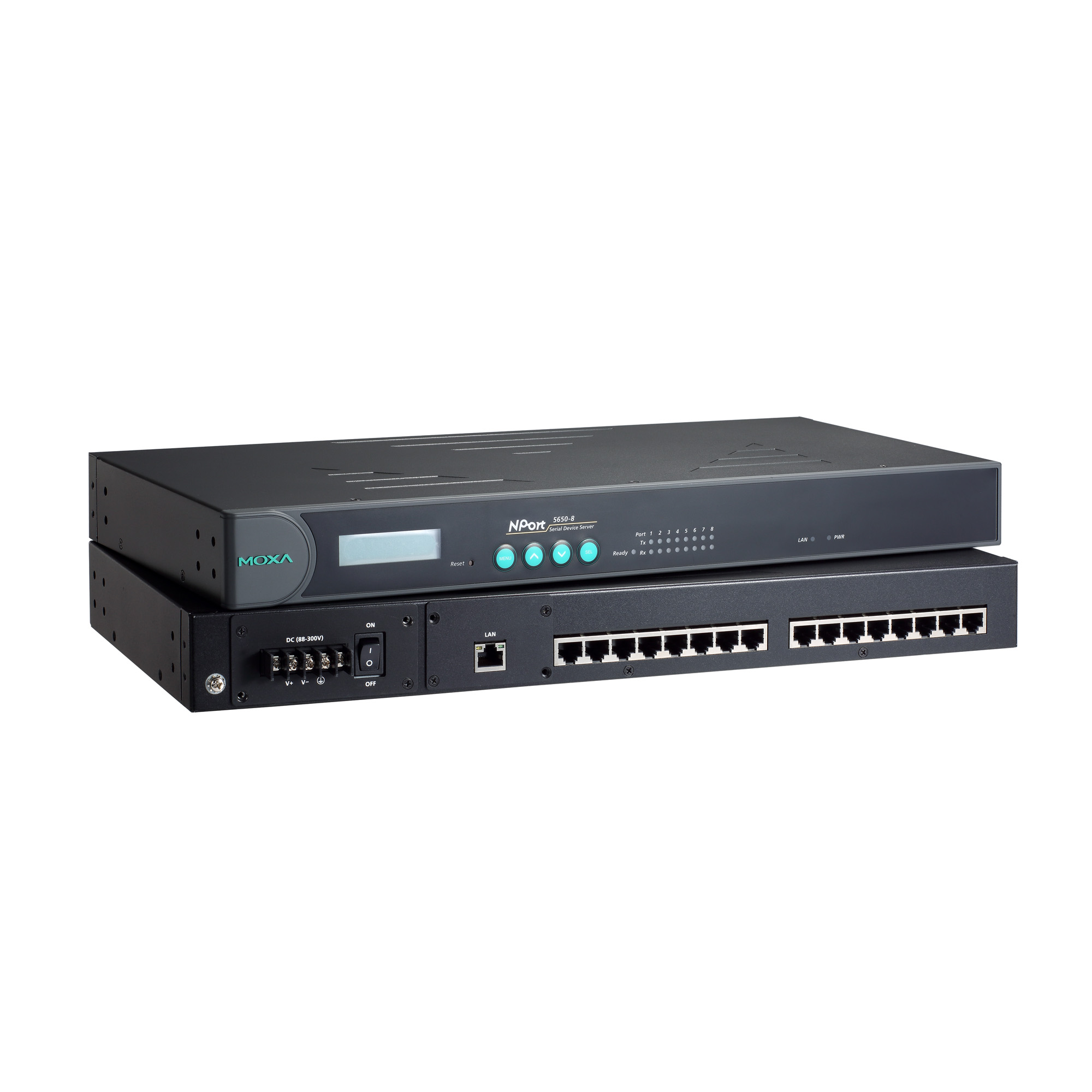

مبدل شبکهNPORT5600Series
مبدل سریال به شبکه شش پورت ركمونت موگزا
با دستگاه NPortack 5600Series ، نه تنها از سرمایه گذاری سخت افزاری فعلی خود محافظت می کنید ، بلکه با متمرکز کردن مدیریت دستگاه های سریال و توزیع میزبان های مدیریتی در شبکه ، امکان گسترش شبکه در آینده را نیز فراهم می سازید.
محصولات مرتبط
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
Magnetic Isolation Protection
1.5kV (built-in)
Configuration Options
Telnet Console, Web Console (HTTP/HTTPS), Windows Utility
Management
ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, RFC2217, Rtelnet, PPP, SLIP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
Filter
IGMP v1/v2c
Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers
Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers
SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
Android API
Android 3.1.x and later
Time Management
SNTP
Connector
8-pin RJ45
Serial Standards
NPort 5610 Series: RS-232
NPort 5630 Series: RS-422, RS-485
NPort 5650 Series: RS-232, RS-422, RS-485
Operation Modes
Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP
Baudrate
Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
Pull High/Low Resistor for RS-485
1kilo-ohm, 150 kilo-ohms
Terminator for RS-485
120ohms
RS-485 Data Direction Control
ADDC® (automatic data direction control)
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
Data+, Data-, GND
Input Current
NPort 5610-8-48V/16-48V: 135 mA @ 48 VDC
NPort 5650-8-HV-T/16-HV-T: 152 mA @ 88 VDC
NPort 5610-8/16: 141 mA @ 100 VAC
NPort 5630-8/16: 152 mA @ 100 VAC
NPort 5650-8/8-T/16/16-T: 158 mA @ 100 VAC
NPort 5650-8-M-SC/16-M-SC: 174 mA @ 100 VAC
NPort 5650-8-S-SC/16-S-SC: 164 mA @ 100 VAC
Input Voltage
HV Models: 88 to 300 VDC
AC Models: 100 to 240 VAC, 47 to 63 Hz
DC Models: ±48 VDC, 20 to 72 VDC, -20 to -72 VDC
Automatic Reboot Trigger
Built-in WDT
Physical CharacteristicHousing
Metal
Installation
19-inch rack mounting
Dimensions (with ears)
480x 45 x 198 mm (18.90 x 1.77 x 7.80 in)
Dimensions (without ears)
440x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
Weight
NPort 5610-8: 2,290 g (5.05 lb)
NPort 5610-8-48V: 3,160 g (6.97 lb)
NPort 5610-16: 2,490 g (5.49 lb)
NPort 5610-16-48V: 3,260 g (7.19 lb)
NPort 5630-8: 2,510 g (5.53 lb)
NPort 5630-16: 2,560 g (5.64 lb)
NPort 5650-8/5650-8-T: 2,310 g (5.09 lb)
NPort 5650-8-M-SC: 2,380 g (5.25 lb)
NPort 5650-8-S-SC/5650-16-M-SC: 2,440 g (5.38 lb)
NPort 5650-8-HV-T: 3,720 g (8.20 lb)
NPort 5650-16/5650-16-T: 2,510 g (5.53 lb)
NPort 5650-16-S-SC: 2,500 g (5.51 lb)
NPort 5650-16-HV-T: 3,820 g (8.42 lb)

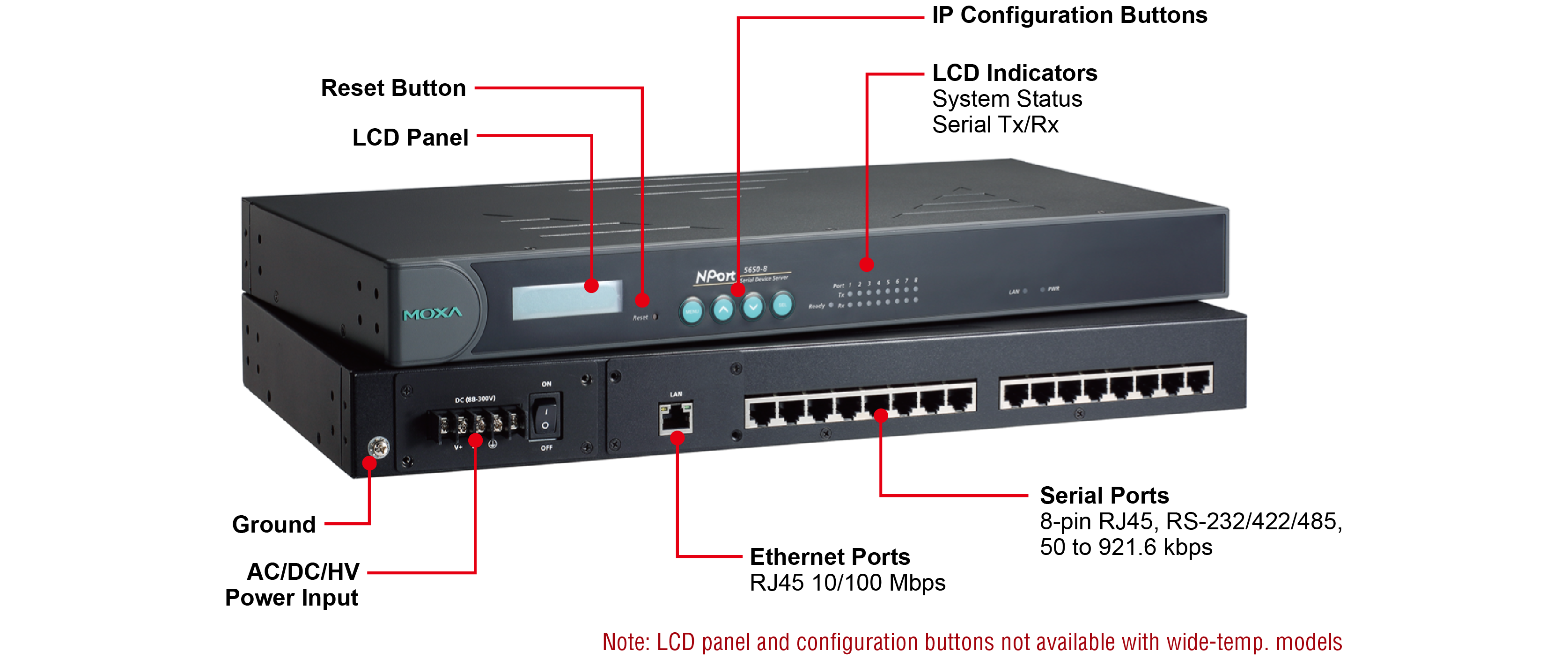

Interactive Interface
LCD panel display (standard temp. models only)
Push buttons for configuration (standard temp. models only)
Operating Temperature
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High-voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included)
Standard Models: -20 to 70°C (-4 to 158°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High-voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5to 95% (non-condensing)
EMC
EN 55032/24
EMS
NPort 5650-8/16 Models:
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8
IEC 61000-4-11
NPort 5650-8/16-HV Models:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8
Safety
UL 60950-1
Medical
EN 55011: 2007+A2: 2007 Class A (Group 1) compliant
EN 60601-1-2: 2007 compliant
MTBTime
NPort 5610-8: 877,888 hrs
NPort 5610-8-48V: 870,961 hrs
NPort 5610-16: 666,105 hrs
NPort 5610-16-48V: 662,111 hrs
NPort 5630-8: 765,449 hrs
NPort 5630-16: 473,748 hrs
NPort 5650-8: 692,010 hrs
NPort 5650-8-T: 692,010 hrs
NPort 5650-8-HV-T: 627,078 hrs
NPort 5650-8-M-SC: 678,053 hrs
NPort 5650-8-S-SC: 678,053 hrs
NPort 5650-16: 473,748 hrs
NPort 5650-16-T: 473,748 hrs
NPort 5650-16-HV-T: 442,626 hrs
NPort 5650-16-M-SC: 467,180 hrs
NPort 5650-16-S-SC: 467,180 hrs
Standards
AC models: MIL-HDBK-217F
HV models: Telcordia (Bellcore) Standard TR/SR
Warranty Period
5 years
